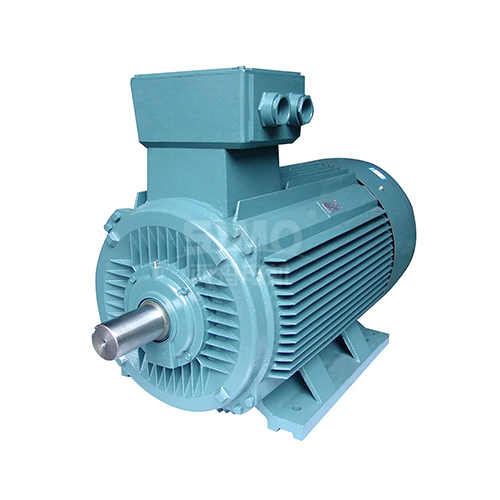

3kv Motor

Type: Y2 motor

Frame: 560mm

Rated voltage: 3kv motor

Rated frequency: 50HZ

Rotation speed: 1500rpm

Power range: 1600KW

Installation type: IMB3

Protection degree: IP55

Cooling method: IC411

Insulation class: Class F

Rated current: 179.3A

Efficiency: 96.5%

Power factor: 0.89 cos φ

Mass weight: 6150kgs

The stator core and frame of Y2 3kv high voltage motor adopts an external press-fit structure, which can be easily maintained. The stator winding adopts F-class insulation, which is fixed in the stator slot by a slot wedge, and the ends are reliably fixed and tied. During the manufacturing process, it has undergone multiple turn-to-turn pulse voltage tests and withstand voltage tests, and has passed vacuum pressure (VPI) The whole immersion solvent-free paint process makes the stator winding have good structural strength, insulation performance, electrical performance and moisture-proof performance. It can be used under harsh environmental conditions and has good electrical performance.

Enterprise advantages:

Comprehensive strength

65 years years, focusing on the development, manufacturing and sales of motor systems.

National high-tech enterprise, successively won the patent demonstration enterprise, Shaanxi star enterprise.

Rich experience

Has provided motor products and motor control system solutions for many industries and tens of thousands of companies.

Scientific production and employee management system

Our company implements ERP (Enterprise Resource Planning) and PDM (Product Data Management) systems to maximize the benefits of internal resources. It can meet customers’ small batch, multi-variety, fast and accurate product customization needs.

Perfect service system

Established long-term cooperative relations with many well-known consulting and training institutions, and continuously improved the professional service level of the team.

One-to-one service, free pre-sales to provide customers with equipment motor application solutions.
