We export slip-ring modular motors to East Asia, Middle East, Europe, Africa more than 20 years. With high overload capacity, low noise, this series motors are widely used with these equipment such as ball mills, fans, compressors, water pumps, crushers.

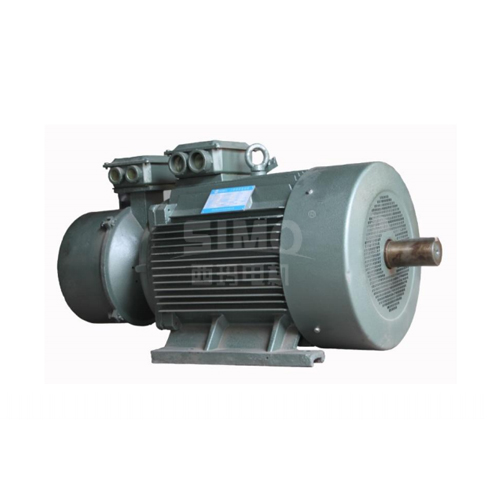

YR slip-ring modular motors is a protected wound rotor three-phase slip ring motor. The power level and installation size of the motor in accordance with IEC international standards. The protection class is IP44 and the cooling method is IC411.
Type: YR IP44
Power: 55kW
Voltage: 380V
Speed: 6 poles
Efficiency: IE2
Frequency: 50Hz
Insulation class: F
Protection class: IP44
Cooling method: IC411
Mounted type: B35
YR IP44 motor is slip-ring modular motors, which is wound rotor 3 phase slip ring motor. The power level and installation size of the motor comply with IEC international standards. The protection class is IP44, the cooling method is IC411. Its rated voltage is 380V, rated frequency is 50HZ, stator △ connection, rotor Y connection.
With high overload capacity, low noise, this kind slip-ring modular motors could be matched with the imported equipment and exchanged. This series motor is used to replace previous series JR, JR2, JR3 and other old series wound rotor motors. It is an ideal product for achieving energy saving, consumption reduction.
FAQ
Which equipment this series motor drive?
It could drive ball mills, fans, compressors, water pumps, crushers.
What about delivery time?
It needs 50 days to produce.
What is their protection class?
They are with IP44.
How long is the warranty period of the motor?
All motors are guaranteed for two years. .
Are you factory?
We are manufacturer of SIMO motor with history of 65 years.
